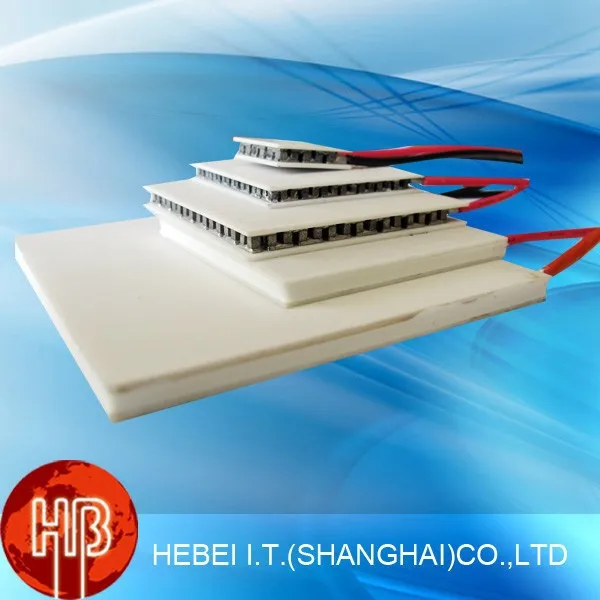

TEC1-12730 62*62mm peltier Thermoelectric Cooler cell semiconductor

Overview

Quick Details

• Place of Origin:

• Shanghai, China

• Brand Name:

• HB

• Model Number:

• TEC1-12730

• Size:

• 62x62x3.9mm (WxDxH)

• Weight:

• 90g

• Max voltage:

• 15.4V

• Max current:

• 30.7A

• Type:

• Cooling Module

• Application:

• small refrigerator, water dispenser

Supply Ability

• Supply Ability

• 200000 Piece/Pieces per Month

Packaging & Delivery

• Packaging Details

• Export Foam Boxes :27*25*5.5CM

• Port

• Shanghai, China

• Lead Time:

• Quantity(Units)	1 - 1	>1
  Est. Time(days)	7	To be negotiated

TEC1-12730 62*62mm peltier Thermoelectric Cooler cell semiconductor

Size 62x62x3.9mm (WxDxH), weight 90g (Jumbo) Imax 30.7A, Umax 15.4V, R = 0.35 ohm, 127 couples TEC1-12730 ΔT max. = 68°C, Qmax (ΔT =0) 350 W TEC1-12730S ΔT max. = 67°C, Qmax (ΔT =0) 350 W

  If you want to know more info., pls browse our website:  http://peltiermodules.com/?p=product

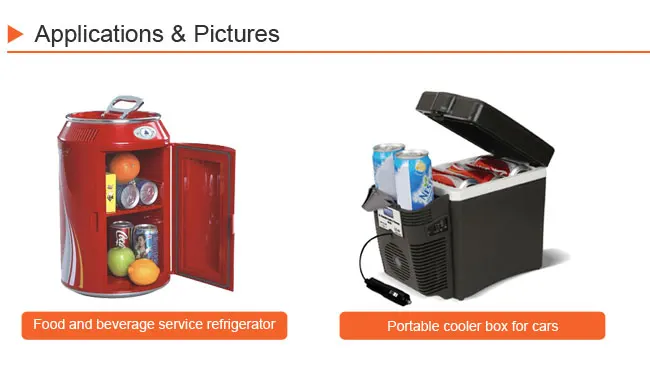

Examples for using Thermoelectric Peltier Modules:
Water Machines, Medical Equipments, Colling boxes and
small fridges, Massagers, Electronic Parts cooling
(Processors, Integrated circuits...) and many more.
