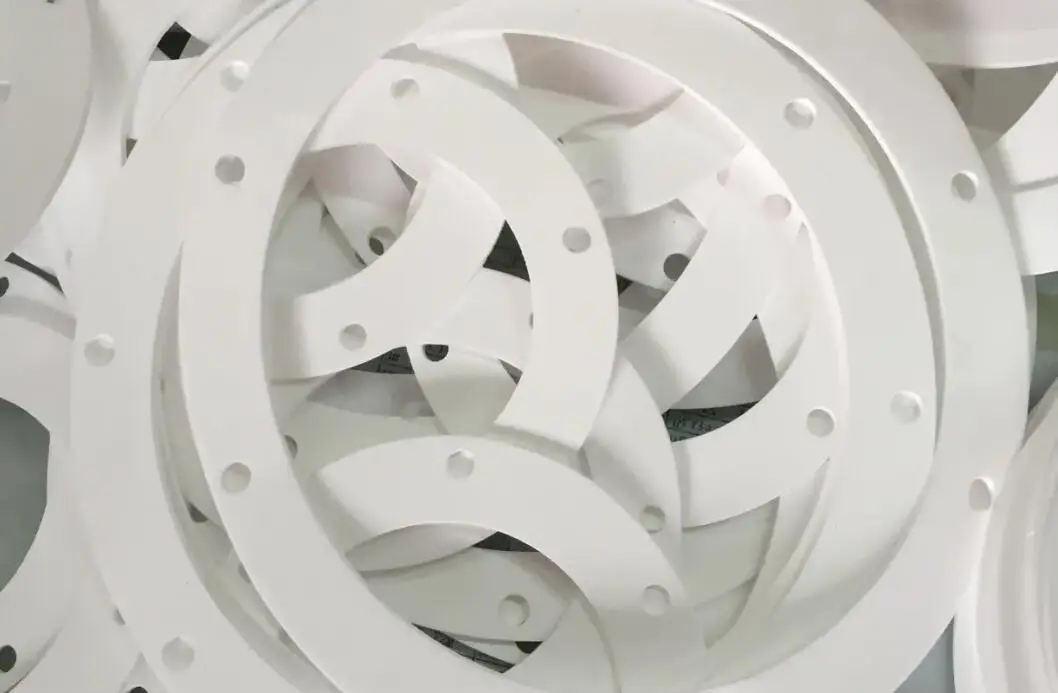

PTFE plastic seal gasket 100% Virgin material
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Zoneyoung
Model Number:
ZY-PTFEG
Product name:
PTFE gasket
Appearance density g/cm3:
2.10-2.30
Tensile strength (min) MPa:
18
Crack elongation (min) %:
230
processing:
cuting/molded
Outer diameter mm:
1--25
Wall thickness mm:
0.1-2.5
Length:
as customized
Color:
White
Sample:
supply sample for test
Packaging & Delivery
Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
10.000 kg
Package Type:
Polywood case or as customized packing for ptfe pipe
Lead Time:
Quantity(Kilograms) 1 - 100 >100 Est. Time(days) 10 To be negotiated
Video Description
100% Virgin PTFE Standard Gasket
| Style | O Ring |
| Shape (For Gasket): | Ring Gasket |
| Function: | Fixed Sealing, Hole Sealing, Rotary Sealing, Nozzle Ring Sealing, Shaft Sealing, Dust Prevention Sealing |
| Application: | Auxiliary Seal, Junction Surface Seal, Equipment Seal, Flange Seal, Hydroseal, Pump Seal |
| Material: | PTFE Gasket |
Custom specifications
Diamater | ≤3000mm |
Thickness | 0.1-10mm |
Technical Indexes
Properties | Unit | Result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength (min) | MPa | ≥15 |
Ultimate elongation (min)(min) | % | ≥150 |
Product | Filled compound and content by weight | Tension strength Mpa min | Ultimate strength % min | Compresive strength MPa min |
1 | 20% glass fiber | 10 | 120 | 16 |
2 | 25% glass fiber | 10 | 100 | 16 |
3 | 20% glass fiber graphile | 10 | 120 | 16 |
4 | 60% bronze | 10 | 80 | 20 |
5 | 15% carbon fiber | 11 | 130 | 16 |
6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |
